Spreitzer Produktbereich Spanntechnik Universal Spannsysteme CLAMPING SOLUTIONS FOR AUTOMATION SYSTEMS

SPREITZER realizes state-of-the-art clamping concepts for your automation solutions. Better clamping. Better milling.

CLAMPING TECHNOLOGY FOR PALLET AUTOMATION

Spreitzer Automation Graphic

SPREITZER realizes state-of-the-art clamping concepts for your automation solutions. Automated loading and unloading of your processing machine by means of an automatic, computer-controlled pallet changer. We offer efficient and modular clamping technology for the pallet automation. The focus here is on maximum performance and variability of the clamping device with an economically economical investment sum.

Strength:

  • Economic efficiency

The mounting hole pattern on the underside of our centering clamps, compact clamps and alternative clamping devices enables them to be combined with various zero point clamping systems or is used for easy mounting on commercially available palletizing and automation systems. At the customer’s request, the centric clamps and compact clamps are available as completely integrated versions or as automation clamps for automation systems from a wide range of manufacturers.

Combination possibilites with zero-point-system resp. palletizing and automation system

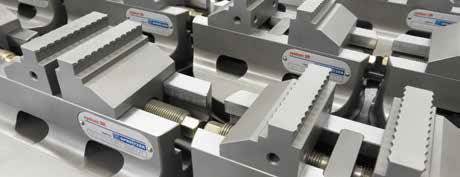

Vises in combination with zero-point-systems resp. palletizing and automation systems

AUTOMATION CLAMPS

Our mechanical, pneumatic or hydraulic automation clamps with integrated interface to various zero point systems offer the best possible accessibility in 5- and multi-sided machining as well as low transport weight.

+ Strengths:

  • No adapter plates
  • Fewer interfaces
  • Less weight

Practical tip: The outer contour / gripper track of the automation clamps can be adapted according to customer requirements.

Examples for automation clamps

Mechanical centric vise MZR 160-60 PA System 3R Magnum

Mechanical centering vise MZR 160-60 PA, System 3R Magnum

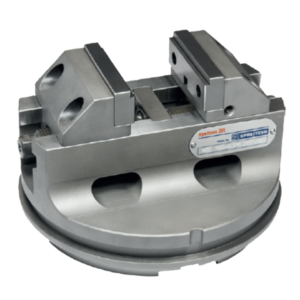

Mechanical centric vise MZE 160-60 PA System 3R Magnum

Mechanical centering vise MZE 160-60 PA, System 3R Magnum

Mechanical centric vise MZU 160-60 PA System 3R Magnum

Mechanical centering vise MZU 160-60 PA, System 3R Magnum

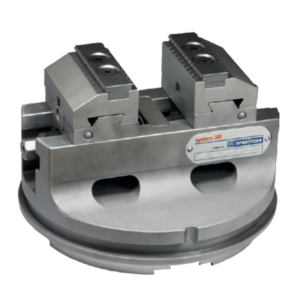

Mechanical centric vise MZQ 160-60 PA System 3R Magnum

Mechanical centering vise MZQ 160-60 PA, System 3R Magnum

Centric vise MZQ on pallet changer SP-APC-1

Mechanical centric vise MZQ 110-60
on pallet changer SP-APC-1

centre-clamping vise MZR 160-60 PA, customized version

Mechanical centre-clamping vise MZR 160-60 PA, customized version

centre-clamping vise MZQ 170-60 PA, Erowa ITS 148

Mechanical centre-clamping vise MZQ
170-60 PA, Erowa ITS 148

AUTOMATION CLAMPS – EXAMPLES
CENTRE-CLAMPING VISES / CENTRIC VISES

Type Ø base body (mm) Length base body (mm) Jaw width (mm) Stroke (2xmm) Span (mm) Clamping force (N) Available for: Zero point system / palletizing system
MZR 80-36 PA 80 80 36 19 59 16 000 Erowa ITS 50
System 3R GPS 70
System 3R Macro 54
System 3R Macro 70
MZE 80-36 PA 80 80 36 18 40 16 000 ^
MZU 80-36 PA 80 80 36 19 78 16 000 ^
MZS 80-36 (A) PA 80 80 36 16 80 16 000 ^
MZR 120-36 PA 120 120 36 39 99 16 000 Erowa ITS 115
System 3R GPS 120
System 3R Macro 70
System 3R Macro 116
System 3R Matrix 110
MZE 120-36 PA 120 120 36 39 80 16 000 ^
MZU 120-36 PA 120 120 36 39 118 16 000 ^
MZR 150-60 PA 148 148 60 34 114 30 000 Erowa ITS 148 / MTS
System 3R GPS 120
System 3R Macro 116
System 3R Matrix 142
MZE 150-60 PA 148 148 60 33 68 30 000 ^
MZU 150-60 PA 148 148 60 31 108 30 000 ^
MZQ 150-60 PA 148 148 60 34 114 30 000 ^
MZS 150-60 (A) PA 148 148 60 37 148 16 000 ^
MZR 160-60 PA 160 160 60 40 126 30 000 Erowa ITS 148 / MTS
LANG Quick Point 52 / 96
System 3R GPS 120
System 3R Magnum
System 3R Matrix 142
MZR 160-60 PA 160 160 80 34 118 40 000 ^
MZE 160-60 PA 160 160 60 39 80 30 000 ^
MZE 160-60 PA 160 160 80 27 70 40 000 ^
MZU 160-60 PA 160 160 60 37 120 30 000 ^
MZU 160-60 PA 160 160 80 31 120 40 000 ^
MZQ 160-60 PA 160 160 60 40 116 30 000 ^
MZQ 160-60 PA 160 160 80 30 108 40 000 ^
MZS 160-60 (A) PA 160 160 60 43 160 16 000 ^
MZS 160-60 (A) PA 160 160 80 25 160 30 000 ^

CLAMPING TECHNOLOGY FOR WORKPIECE AUTOMATION

Automatic workpiece handling by integrating a multi-axis industrial robot on your production machine.

We manufacture high-performance clamping solutions in the field of workpiece automation. Our pneumatic, hydraulic and electromechanical clamping devices allow universal use. We develop and supply customized designed clamping fixtures and fixture units for the multiple assembly of your manufacturing cell.

Clamping technology for workpiece automation

Mechanical centering vise MZQ
170-60 PA, Erowa ITS 148

Clamping technology for workpiece automation

Hydraulic centric clamping device HZS 120-60 in automation cell

Clamping technology for workpiece automation

Pneumatic centric clamping device PZS2 120-60 in automation cell on palletizing system

Clamping technology for workpiece automation

Hydraulic centric clamping device HZS 180-80 in automation cell

JAW QUICK-CHANGE SYSTEM

Automated exchange of workpiece and clamping jaws

Automated exchange of workpiece and clamping jaws in automation cells.

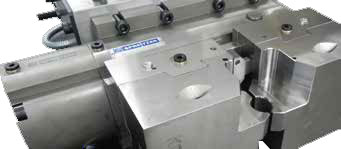

Customized clamping jaws, HZS 250-100 A

Customized clamping jaws, HZS 250-100 A

Change clamping jaws automatically

Within flexible manufacturing cells in the field of workpiece automation, it is inevitable that not only the workpieces have to be loaded and unloaded. The automated change of clamping devices and jaws is also imperative in order to machine a wide variety of parts unmanned.

With our solutions, different clamping jaws can be changed fully automatically by means of industrial robots and grippers within seconds in an operationally reliable manner.

The system works self-locking and is unlocked and locked without further mechanical operation.

+ Strengths:

  • System operates without further mechanical actuation
  • Clamping jaw change can be automated
  • Clamping jaw change within seconds
  • Completely integrated system
  • Self-locking

Available for:

  • Hydraulic centric vise HZS 180-100 A
  • Hydraulic centric vise HZS 250-100 A
  • Hydraulic centric vise HZS 300-125 A
  • Electromechanical centric clamping device EZC 220-80
  • Electromechanical centric clamping device EZC 280-100

Other versions available on request.
Technical details, see separate product information.

Telephone Icon

WHAT WE CAN OFFER YOU?

In automated operation, your production runs around the clock – seven days a week. We offer needs-based solutions for every automation requirement. Highly efficient, reliable and economical.
